Used CFT Oil Filling Monoblock – Comaco 6000 bph – Overview

This second hand CFT–COMACO RVAR 6/10 + TA/3 is a volumetric piston filling and press-on capping monoblock engineered for edible oil. Built in 2008 and currently in production, it is a proven asset for industrial packaging environments looking to expand or upgrade a used bottling line.

We can sell as it is see and like or with maintenance operation to prepare the monoblock for the production.

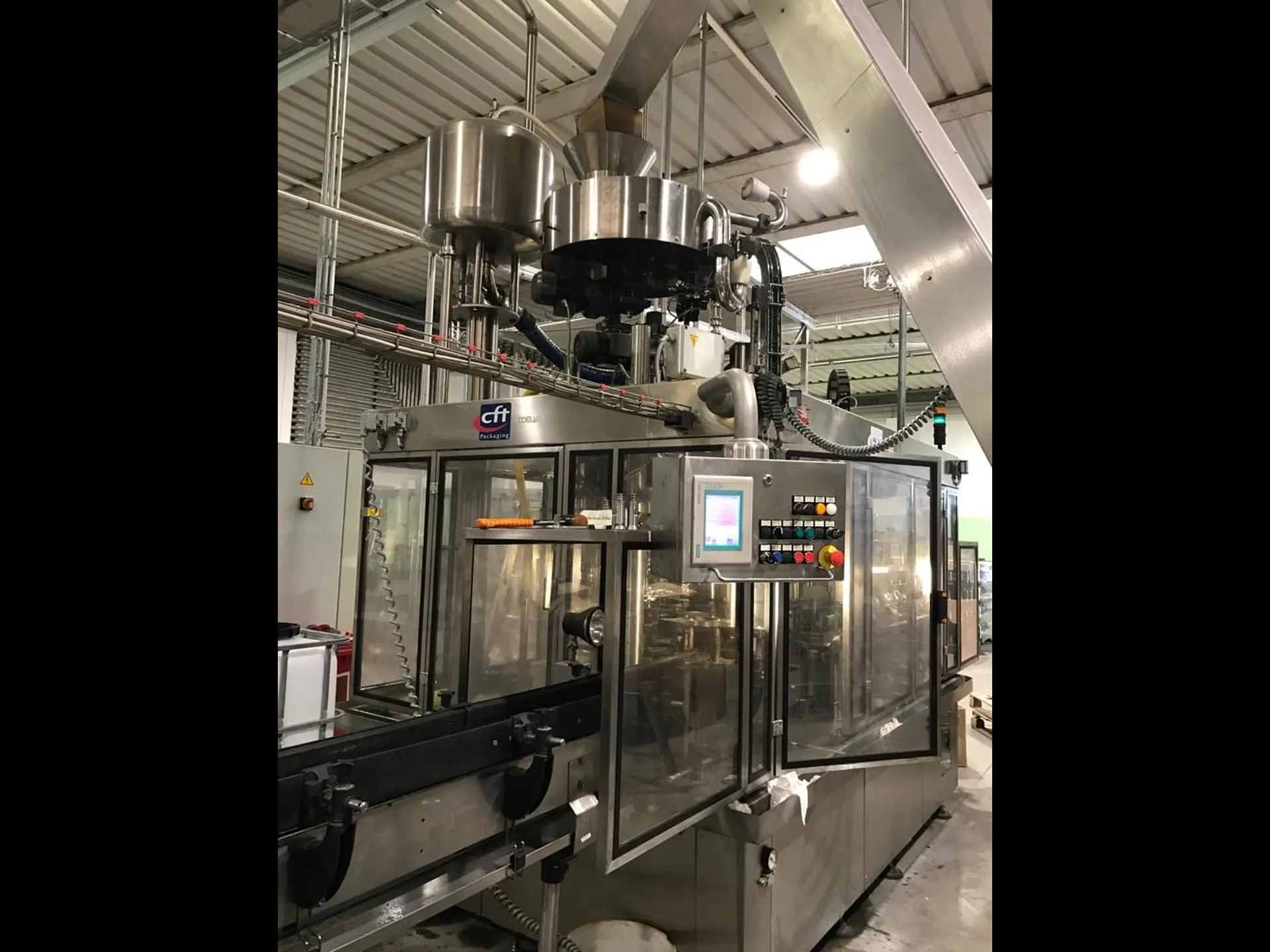

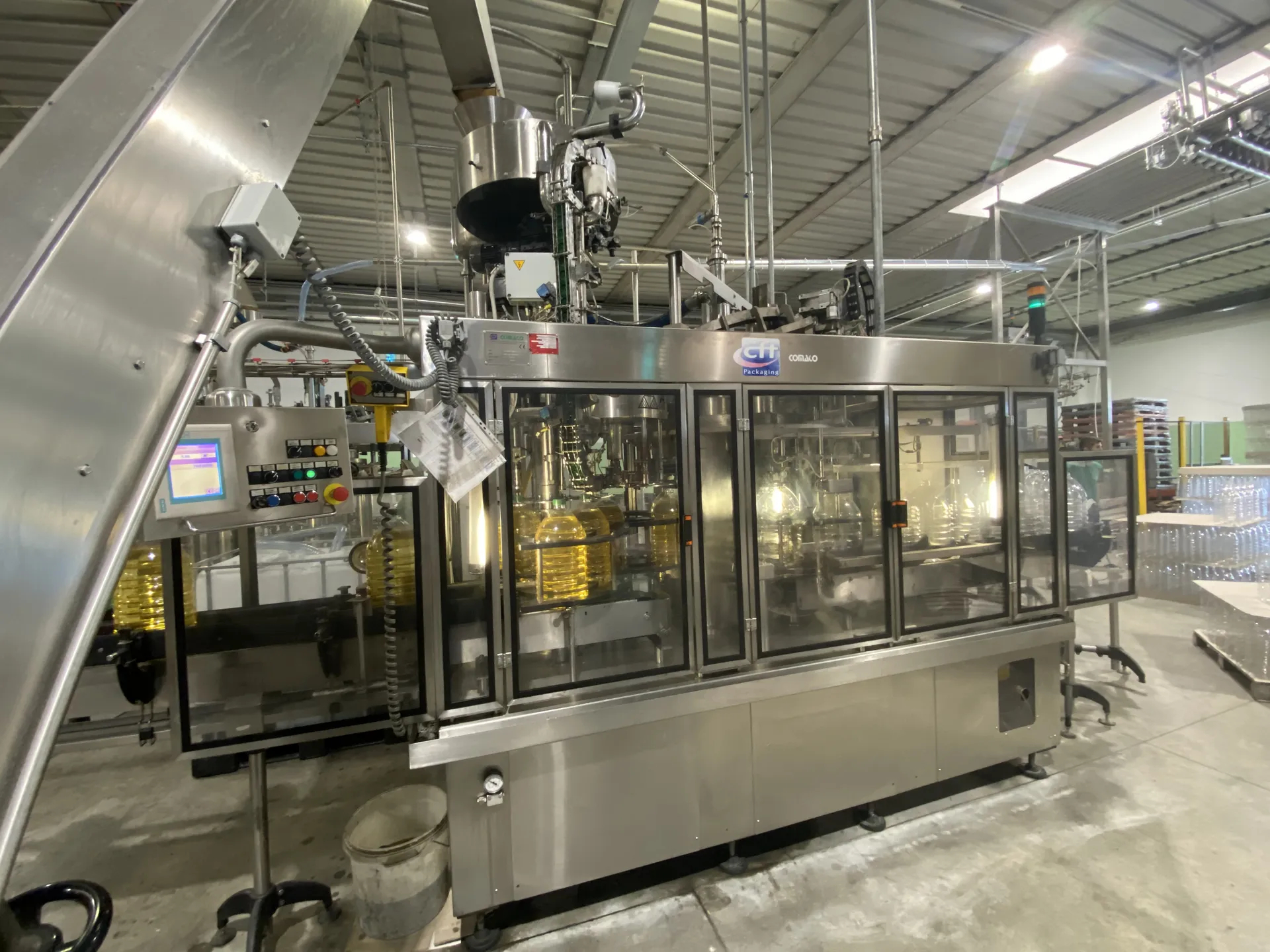

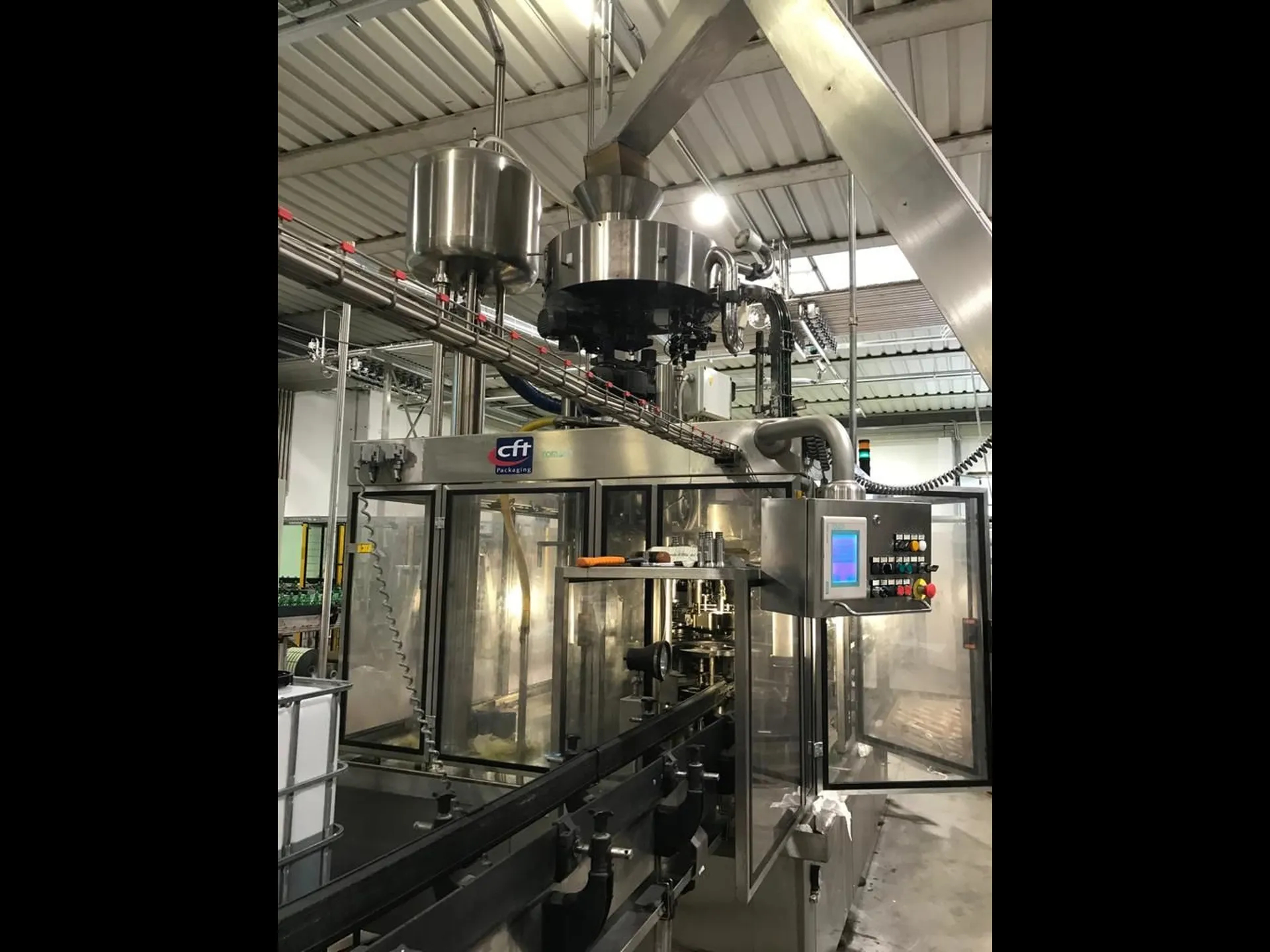

The monoblock couples a 6-piston out-of-neck volumetric filler with a 3-head press-on capper equipped with pick & place. It is set up for 5 L PET and supplied with change parts for multiple PET and tinplate formats. Manuals and CE safety guarding are included.

Technical Specifications & Performance Data

Filler – CFT/COMACO RVAR 6/10 (volumetric)

• Product: Edible oil (filling temperature 10–30 °C)
• Filling system: 6 volumetric dosing groups (cylinders & pistons, plug valves), out-of-neck filling; max dose 10,500 cc
• Nozzles: 6 + 6 + 6 patented nozzles dedicated to edible oils
• Accuracy: 1σ = 0.6 g
• Mechanical data: filler pitch 377 mm; pitch circle diameter 720 mm; max container diagonal 220 mm; max height 460 mm
• Construction: painted steel base fully clad in AISI 304 stainless steel; AISI 304 product hopper with convex bottom and float level control

Capper – TA/3 (press-on)

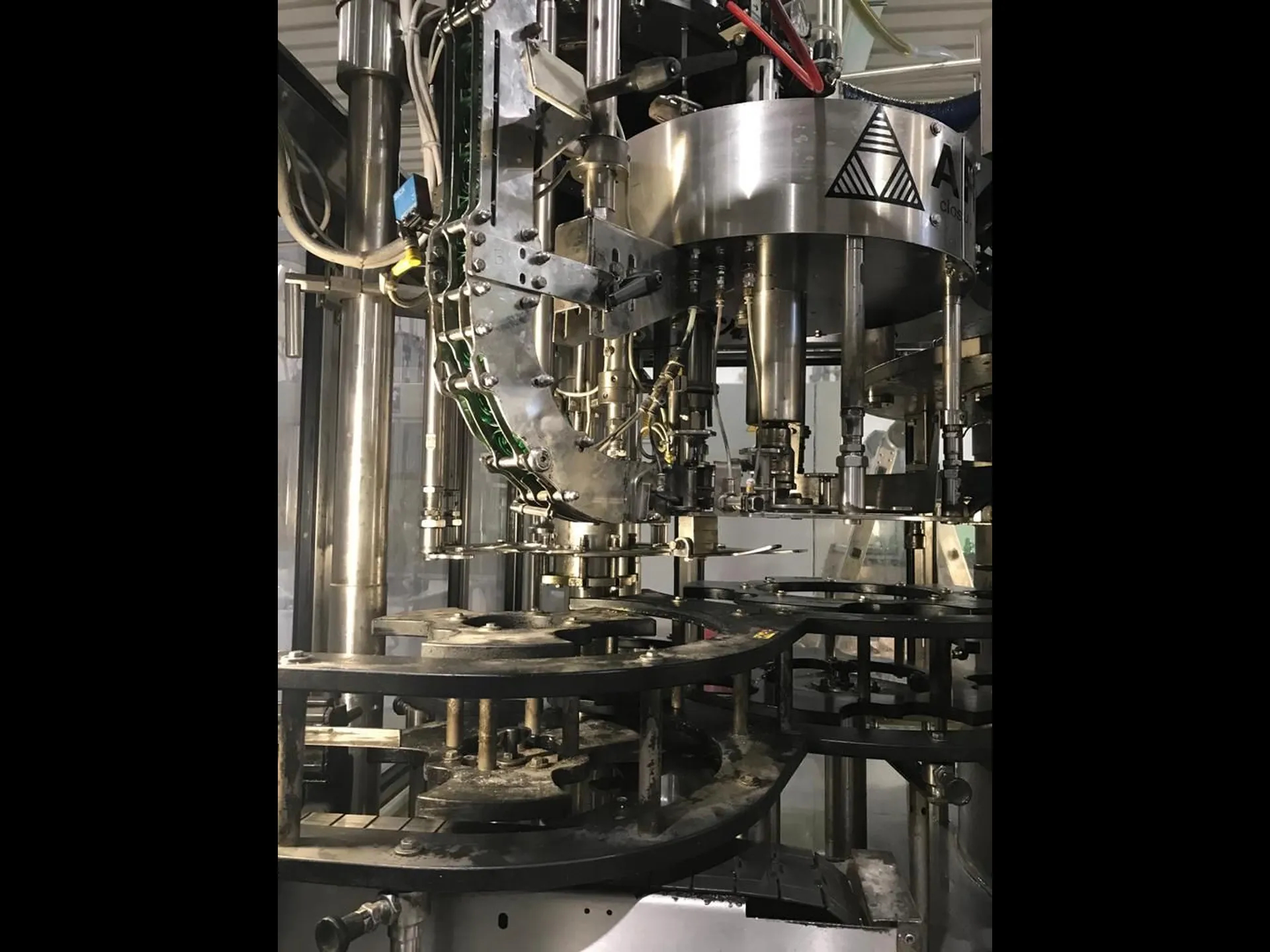

• 3 capping heads with PP320 press-on heads and positive pick (vacuum-assisted)
• Rated capacity: up to 6000 cph for PET press-on caps
• Pitch circle diameter 360 mm; machine pitch 377 mm
• Pick & place cap transfer; hardened steel cam for head pistons
• Automatic electric turret height adjustment; centralized lubrication shared with filler
• Two cap elevators, each with 300 L covered hopper, cleated belts, and low-level control; mobile stainless steel frames on wheels

Formats, closures and indicative speeds

• PET: 1 L (Ø20), 2 L (Ø28), 3 L (Ø40), 5 L (Ø40), 10 L (Ø40)
• Tinplate: 1 L (Ø32), 3 L (Ø32), 3 L/Gallon/5 L (Ø32)
• Press-on caps: 31/17 (1 L PET), 38/24 (2 L PET), 51/24 (3–5–10 L PET); flex-spout common to all tinplate formats
• Approx. filler outputs: up to 3500 bph (1 L PET Ø20), 3000 bph (2 L PET Ø28), 2500 bph (3 L tinplate Ø32), 2500 bph (5 L PET Ø40), 2200 bph (5 L tinplate Ø32), 1100 bph (10 L PET Ø40)

Advanced Automation & Control Systems

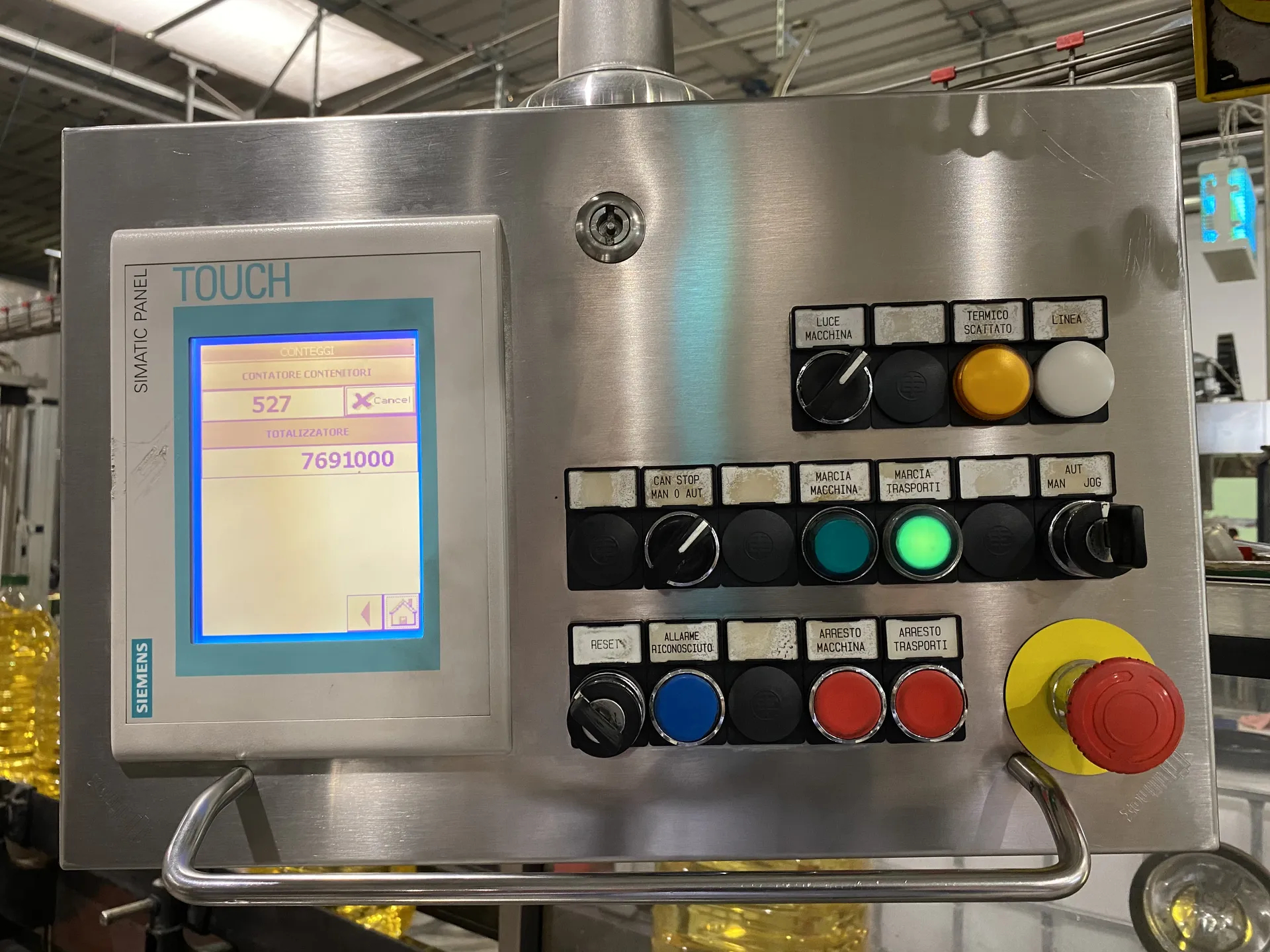

• Siemens PLC: SIEMENS S7 E300 with operator controls for automatic and manual modes; inverter-driven main motion with increased power to drive the capper via gears
• Automatic turret height adjustment (filler and capper)
• Micrometric volume adjustment via cam reducer; adjustable even during machine motion
• Volume compensation versus product temperature (automatic correction for ±2 °C delta)
• Per-doser volume fine correction
• NO CAN–NO FILL device prevents valve opening without a container
• Product level control in hopper with min/max/emergency signals; emergency level triggers machine stop
• Pneumatic system with pressure reducer group and pressure switch for automatic stop on low air pressure
• Cap presence control on outfeed and capping-completed verification
• Container presence/reading control and tinplate container orientation system at infeed
• Internal machine lighting for enhanced visibility

Production Line Integration Capabilities

Designed to slot into a used bottling line for edible oil within industrial packaging settings:

• Integrated container conveyor in stainless steel with synchronization screws, infeed extension and loading table
• Transfer starwheel between filler and capper
• Product changeover system with recovery tank beneath the track, stainless discharge piping and coupling to plant lines; dedicated pump included
• Standard electrical interfaces and signaling via Siemens PLC for upstream/downstream equipment
• Note: monoblock includes filler and press-on capper; no rinser or blowing machine is included

Machine Condition & Maintenance History

• Status: In production at the time of listing
• Year: 2008; Model: CFT–COMACO RVAR 6/10 + TA/3
• Documentation: Supplied with original use and maintenance manual
• Preventive care features: centralized automatic lubrication to all points; IP-rated electricals

Operational Performance & Versatility

• Optimized for edible oil with out-of-neck filling to minimize aeration and drips
• Quick-access pistons for fast extraction without extensive disassembly; hygienic AISI 304 contact parts
• Equipped for 5 L PET; supplied change parts: 7 sets total/partial for different containers and 3 sets for press-on caps
• Handles PET and tinplate containers up to 460 mm height and 220 mm diagonal

Installation Requirements & Site Preparation

• Mains: 400 V ±5%, 50 Hz ±1%, 3P + N + PE (separate neutral and earth)
• Auxiliaries: 24 V DC; instrumentation 24/230 V AC
• IP ratings: main electrical system IP54; motors IP54; on-machine electrics IP55
• Ambient conditions: temperature 5–40 °C; relative humidity 30–80% (non-condensing); altitude up to 1000 m; non-explosive, non-corrosive atmosphere
• Clean, dry compressed air supply required for pneumatic actuations (pressure switch stops machine on low pressure)

Safety Standards & Compliance Certification

• CE-compliant safety guarding in AISI 304 with opening panels
• Emergency stop and main isolator on control panel
• Cap presence verification and capping-done control with reject logic available to line PLC
• Electrical protection to IP54/IP55 as specified

This CFT–COMACO monoblock is a reliable, second hand solution for companies upgrading their used bottling line in edible oil and related beverage production segments, combining robust mechanics with modern automation for consistent, accurate filling and secure press-on capping.
