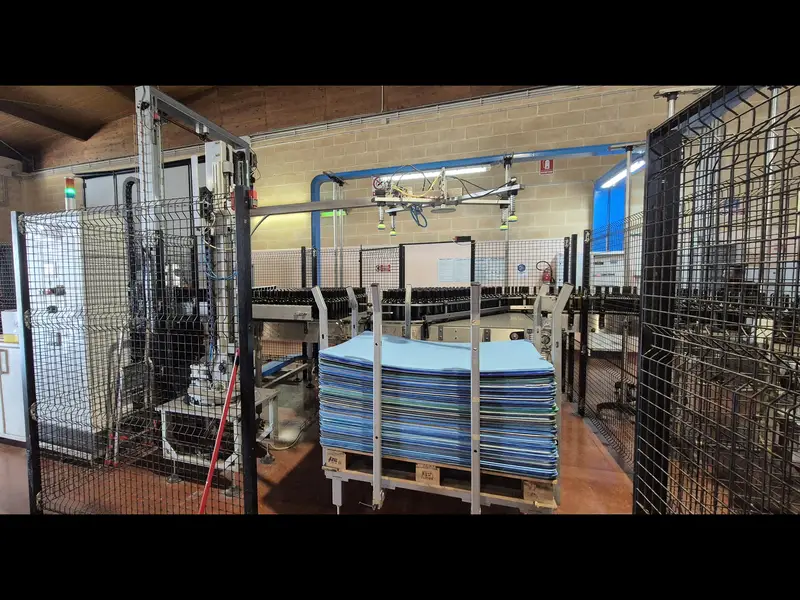

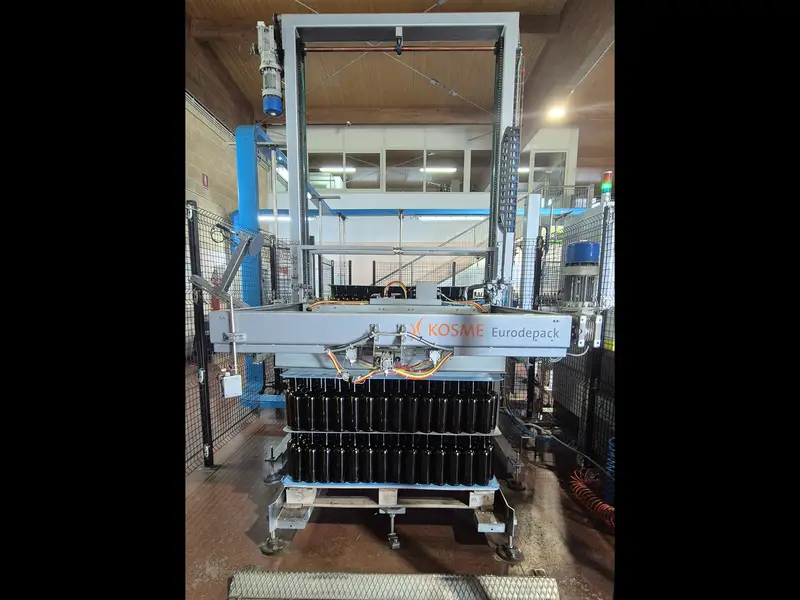

Used Depalletizer Kosme Eurodepack B1L m-40-RF 7000 bph

The Used Depalletizer Kosme Eurodepack B1L m-40-RF 7000 bph is an automatic bottle depalletizing system designed for the efficient unloading of empty glass bottles from pallets and their smooth transfer into the bottling line. This machine operates with a sweep-off system, handling complete layers of bottles in a controlled and precise motion, ensuring integrity and stability throughout the depalletizing process. Built for reliability and continuous industrial use, it is engineered to sustain high-speed operations while maintaining gentle bottle handling, making it particularly suitable for wine bottling applications.

The system is equipped with a motorized lifting platform that positions each pallet layer at the optimal height for the sweep-off carriage. Bottles are transferred laterally onto the discharge table, which is connected to an overhead conveyor at a height of 3,000 mm. This elevated discharge allows direct integration into bottling lines with high-level bottle infeed systems, ensuring smooth flow and avoiding unnecessary floor space usage. The sweep-off mechanism is synchronized with a layer sheet removal system, which efficiently extracts interlayers between bottle rows without disrupting the cycle.

All structural components are manufactured in stainless steel, ensuring corrosion resistance and compliance with hygiene standards for the food and beverage industry. Safety guarding in transparent polycarbonate provides operator protection while allowing clear visibility of the process. Access doors are fitted with interlocked safety switches, stopping the machine immediately when opened.

Performance and Handling Capabilities

With a nominal output of 7,000 bottles per hour for 0.75 L wine bottles, the depalletizer is capable of sustaining medium-to-high production speeds without becoming a bottleneck in the line. The handling system accommodates standard cylindrical wine bottles as well as shaped formats within the diameter and height range typically used in the wine industry. This versatility allows it to operate seamlessly in lines processing multiple bottle designs, from standard Bordolese to conical premium bottles.

Bottle stability during transfer is ensured by precision-aligned guide rails and controlled sweep-off speed. The discharge conveyor is designed to accept bottles in a single file without accumulation shock, and the infeed height of 3,000 mm makes it fully compatible with existing high-level air or belt conveyor systems. The machine’s motion control is achieved through robust motor drives, with each function timed to minimise cycle interruptions and reduce mechanical stress.

Automation and Integration

The depalletizer is fitted with its own dedicated electrical cabinet, providing independent control and easy integration into a complete bottling line. The system can be synchronised with upstream and downstream equipment via standard industrial communication protocols, ensuring coordinated start/stop and preventing line jams. The conveyor discharge section is built with stainless steel frames and modular belts, equipped with an automatic lubrication system for reduced maintenance requirements.

The Used Depalletizer Kosme Eurodepack B1L m-40-RF 7000 bph combines robust mechanical design with gentle bottle handling, making it a reliable and efficient solution for continuous operation in professional wine bottling environments. Its ability to handle complete layers, manage interlayer removal, and discharge bottles at high level ensures compatibility with modern bottling line layouts and supports consistent production performance.
