Complete Bottling Line

Ref: LC445
  • Used Complete Bottling Line Krones for Still products 48000 bph - 0
  • Used Complete Bottling Line Krones for Still products 48000 bph - 1
  • Used Complete Bottling Line Krones for Still products 48000 bph - 2
  • Used Complete Bottling Line Krones for Still products 48000 bph - 3
  • Used Complete Bottling Line Krones for Still products 48000 bph - 4
  • Used Complete Bottling Line Krones for Still products 48000 bph - 5
  • Used Complete Bottling Line Krones for Still products 48000 bph - 6
  • Used Complete Bottling Line Krones for Still products 48000 bph - 7
  • Used Complete Bottling Line Krones for Still products 48000 bph - 8
  • Used Complete Bottling Line Krones for Still products 48000 bph - 9
  • Used Complete Bottling Line Krones for Still products 48000 bph - 10
  • Used Complete Bottling Line Krones for Still products 48000 bph - 11
  • Used Complete Bottling Line Krones for Still products 48000 bph - 12
  • Used Complete Bottling Line Krones for Still products 48000 bph - 13
  • Used Complete Bottling Line Krones for Still products 48000 bph - 14
  • Used Complete Bottling Line Krones for Still products 48000 bph - 0
  • Used Complete Bottling Line Krones for Still products 48000 bph - 1
  • Used Complete Bottling Line Krones for Still products 48000 bph - 2
  • Used Complete Bottling Line Krones for Still products 48000 bph - 3
  • Used Complete Bottling Line Krones for Still products 48000 bph - 4
  • Used Complete Bottling Line Krones for Still products 48000 bph - 5
  • Used Complete Bottling Line Krones for Still products 48000 bph - 6
  • Used Complete Bottling Line Krones for Still products 48000 bph - 7
  • Used Complete Bottling Line Krones for Still products 48000 bph - 8
  • Used Complete Bottling Line Krones for Still products 48000 bph - 9
  • Used Complete Bottling Line Krones for Still products 48000 bph - 10
  • Used Complete Bottling Line Krones for Still products 48000 bph - 11
  • Used Complete Bottling Line Krones for Still products 48000 bph - 12
  • Used Complete Bottling Line Krones for Still products 48000 bph - 13
  • Used Complete Bottling Line Krones for Still products 48000 bph - 14
Components
Machine typeManufacturerModelYearNotes
Machine typeBlow Molding MachineManufacturerKronesModelContiformYear2015Notes22 cavities
Machine typePreform conveyorManufacturerKronesModelContifeedYear2015Notes
Machine typeFilling MonoblockManufacturerKronesModelContiform 50-20Year2015Notes
Machine typeWind DryerManufacturerHawkeyeModelSmart C-3000Year2021Notes
Machine typeInspectorManufacturerHawkeyeModelSmart C-1100Year2015Notes
Machine typeLabeling MachineManufacturerKronesModelErgomodulYear2021Notes
Machine typeWind DryerManufacturerKronesModelLinadryYear2020Notes
Machine typeInspectorManufacturerHawkeyeModelYear2021NotesLabel detector
Machine typeCase PackerManufacturerKronesModelYear2015Notes
Machine typeShrink WrapperManufacturerYCTDModelYCCR55Year2023Notes
Machine typeWeightening MachineManufacturerKronesModelYear2016Notes
Machine typePalletizerManufacturerKronesModelYear2023Notes
Machine typeShrink WrapperManufacturerYCTDModelYear2023Notes
Components
Machine typeManufacturerModelYearNotes
Machine typeBlow Molding MachineManufacturerKronesModelContiformYear2015Notes22 cavities
Machine typePreform conveyorManufacturerKronesModelContifeedYear2015Notes
Machine typeFilling MonoblockManufacturerKronesModelContiform 50-20Year2015Notes
Machine typeWind DryerManufacturerHawkeyeModelSmart C-3000Year2021Notes
Machine typeInspectorManufacturerHawkeyeModelSmart C-1100Year2015Notes
Machine typeLabeling MachineManufacturerKronesModelErgomodulYear2021Notes
Machine typeWind DryerManufacturerKronesModelLinadryYear2020Notes
Machine typeInspectorManufacturerHawkeyeModelYear2021NotesLabel detector
Machine typeCase PackerManufacturerKronesModelYear2015Notes
Machine typeShrink WrapperManufacturerYCTDModelYCCR55Year2023Notes
Machine typeWeightening MachineManufacturerKronesModelYear2016Notes
Machine typePalletizerManufacturerKronesModelYear2023Notes
Machine typeShrink WrapperManufacturerYCTDModelYear2023Notes

Interested in this machine?










    Description

    This line is Brand new - never used.

    Krones 48,000-bottle-per-hour (BPH) complete bottling line for non-carbonated products is designed for PET containers with sizes of 0.38 L and 0.55 L, using volumetric filling and 30/25 type necks. The line includes several key components, including a 2015 Krones Contiform blow molding machine with 22 cavities, a 2015 Krones Contifeed preform conveyor, and a 2015 Krones Contiform 50-20 filling monoblock. The system also includes 2021 Hawkeye Smart C-3000 and 2020 Krones Linadry air dryers, 2021 Krones labeling machines, and several other machines for inspection, packaging, shrink wrapping, and palletizing. This used bottling line is ready to use and monitors the operational status of each machine monthly to ensure maximum efficiency and reliability.

    Krones Contiform 2015 blow molding machine with 22 cavities

    The Krones Contiform 2015 blow molding machine with 22 cavities is designed for high-speed production of PET containers, with an output capacity of up to 48,000 bottles per hour. The Contiform uses an optimized linear infrared heating module for preforms up to 160 mm in length and 48.5 mm in support ledge diameter. This model features advanced blow molding technology, enabling production of up to 2,750 containers per cavity per hour, while reducing compressed air consumption by 15% compared to previous models. The intelligent control system of the Contiform ensures consistent bottle quality through various optional modules, such as the Prejet preform internal cleaning system and the PET-View inspection system for integrated quality control of preforms and containers. The machine includes a blowing module with an advanced mold clamping mechanism, eliminating the need for a pressure pad and allowing the production of bottles up to 2.0 liters in volume on a reduced-size blowing module, occupying 22% less space than previous models. The active transfer system with five-point heating mandrels in the linear oven and reduced number of internal horizontal transfer points for preforms and containers improve operational efficiency. The high-precision Monotec servo motors with real-time synchronization ensure precise and reliable handling of preforms throughout the blow molding process.

    Krones Contifeed 2015 preform conveyor

    The Krones Contifeed 2015 preform conveyor is designed to ensure continuous and consistent feeding of preforms to the blow molding machine. The Contifeed system supports various types of preforms, including lightweight, standard, and heavy, and is available in three models suited to the respective blow molder capacity. The feed rail variants include a gravity system for common preforms and an air-assisted system, ideal for lightweight preforms and high-speed applications. The Contifeed features automatic adjustment for quick format changes, hygienic design, and a soft-tilting preform tipper for gentle preform feeding. The infrared heating technology of the heating tunnel includes very small oven chains (36.4 mm or 50 mm), adjustable base reflectors, and a maintenance-free ceramic reflector system. The infrared heaters use parabolic reflectors for the top emitter and reduced dead spaces between heaters, improving energy efficiency and reducing energy consumption by 15%.

    Krones Contiform 50-20 2015 filling monoblock

    The Krones Contiform 50-20 2015 filling monoblock combines filling and capping phases into a compact unit. Utilizing volumetric filling technology, the system can handle bottle formats of 0.38 L and 0.55 L with 30/25 necks. The integrated weight control system ensures that each filled bottle has the correct weight, preventing underfilling or overfilling issues. The modular construction of the machine facilitates maintenance and reduces downtime, improving overall productivity. The filling system uses fully electronic PFR filling valves with infinitely variable control, allowing precise and flexible operation that can be adapted to different types of beverages and container formats.

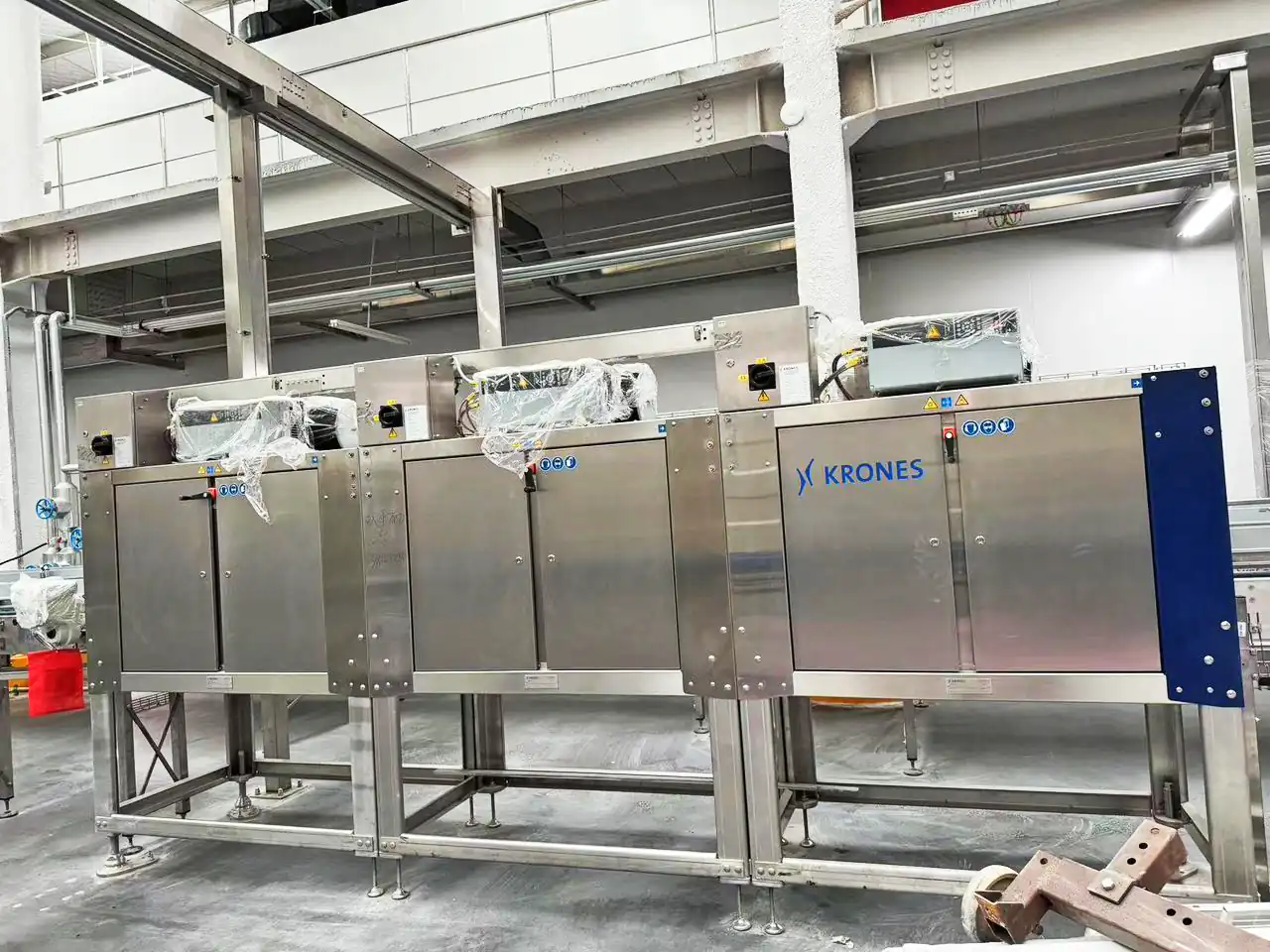

    Hawkeye Smart C-3000 2021 and Krones Linadry 2020 air dryers

    The Hawkeye Smart C-3000 2021 and Krones Linadry 2020 air dryers use high-speed air flows to ensure that bottles are perfectly dry before the labeling phase. The Smart C-3000 features an intelligent control system that optimizes airflow for effective moisture removal, while the Linadry uses advanced drying technology to reduce drying time and improve bottle quality. These systems reduce the risk of labeling defects caused by residual moisture, ensuring better label adhesion and a more professional final appearance. Both dryers are designed for continuous and reliable operation, with optimized energy consumption, making them ideal for high-capacity production lines.

    Krones 2021 labeling machine

    The Krones 2021 labeling machine is designed to apply labels to PET bottles with precision and speed. Equipped with an intuitive touchscreen interface and intelligent control system, it ensures perfect alignment of labels on each bottle. The machine can be quickly adjusted for different bottle formats, making it ideal for high-capacity production lines that require flexibility and efficiency.

    Hawkeye 2015 and 2021 inspection system

    The Hawkeye inspection system, with units from 2015 and 2021, uses advanced vision technologies to detect defects in bottles and labels. The system can identify imperfections such as cracks, air bubbles, deformations, and labeling defects, ensuring that only products that meet standards are sent to the market. The system's modularity allows for easy upgrades and maintenance, improving the overall reliability of the production line.

    Krones 2015 case packer

    The Krones 2015 packer organizes and prepares bottles for transport in a safe and efficient manner. Designed to operate at high speeds, this machine ensures that bottles are stable and protected during handling, minimizing the risk of damage. The packer's robust construction and advanced automation allow for quick configuration for different bottle formats, supporting the productivity of the bottling line.

    YCTD YCCR55 2023 shrink wrapper

    The YCTD YCCR55 2023 shrink wrapper uses shrink films to protect bottles during shipping. The system ensures that bottles are tightly wrapped, preventing damage and facilitating transport. The wrapper features an advanced control system that optimizes the wrapping process for effective protection and a clean presentation of the packages.

    Krones 2023 palletizer

    The Krones 2023 palletizer is designed to organize and stack bottles on pallets in a stable and secure manner. It uses active transfer technology with actively controlled transfer grippers, reducing the number of internal transfer points and improving palletizing precision. The machine is equipped with high-precision servo motors that ensure real-time synchronization, optimizing storage space and facilitating the handling of finished products.

    Krones 2016 scale

    The Krones 2016 scale ensures that each filled bottle has the correct weight, preventing underfilling or overfilling issues. This weight control device is essential for maintaining product consistency and complying with quality standards. The scale is integrated into the bottling line to provide accurate and continuous measurements, improving overall operational efficiency. This Krones bottling line, new and never used, represents a complete and technologically advanced solution for packaging beverages in PET bottles, ideal for companies that require high production capacity while maintaining high-quality standards.
    DISCLAIMER: The operational status of each machine is monitored on a monthly basis. Therefore we will promptly update the current status of the machine only at the time of your request.
